T1 over fiber
The FIB1-T1 family of fiber converters allow extension of a single T1 RJ48c 100ohms port over multimode, single-mode or single strand fiber circuits. The standard interface for fiber optics is the SC connector. On special customer request ST and FC connectors can be provided. T1 interface can be framed or unframed. The fiber converter is totally transparent to the T1 signal. Applications include extension of smart-jacks over fiber, PBX interconnection or T1 transport.
- Product
- Qty in Cart
- Quantity
- Price
- Subtotal
-
FRM220-FTEC-CH01MAC - cross rate fractional E1 to T1 converter, managed, AC power
CTCUnion
MSRP: $849.00$650.00Product description The FRM220-FTEC is a T1 (US Standard) /E1 (European Standard) converter and timeslot cross connect which enables conversion between one T1 signal and one E1 signal. T1 and E1 signals with framing employ u-Law and A-Law compander...FRM220-FTEC-CH01MACMSRP: $849.00$650.00 -
FRM220-DS3-E3-CH01MAC - coax E3 / DS3 over fiber (SFP slot)media converter w/ console mgmt and embedded AC PS
CTCUnion
MSRP: $795.00$595.00Product description The FRM220-DS3-E3 is an extremely versatile E3 and DS3 over fiber media converter. Any 155Mbps rate optical SFP transceiver can be installed into the single SFP slot of the media converter, offering maximum flexibility for the optical...FRM220-DS3-E3-CH01MACMSRP: $795.00$595.00 -

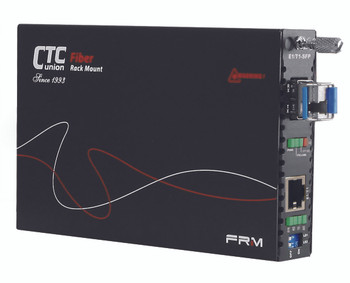

FRM220-E1-T1-SFP - E1 / T1 to SFP slot fiber media converter w/ web and console based management support
CTCUnion
MSRP: $339.00$245.00Product description The FRM220-E1-T1-SFP is an extremely versatile E1 and T1 fiber media converter. Any 155Mbps rate optical SFP transceiver can be installed into the single SFP slot of the FRM220-E1-T1-SFP converter, offering maximum flexibility for the...FRM220-E1-T1-SFPMSRP: $339.00$245.00 -
FRM220-E1-T1-SC002 - E1 / T1 to multimode fiber 2Km, 1310nm media converter, SC, managed
CTCUnion
MSRP: $339.00$245.00Product description The FRM220-E1-T1-SC002 is a multi-mode 1310nm, 2Km range, dual fiber, E1 or T1 extender. A simple DIP switch sets unit for operation on E1 120Ohms or T1 100Ohms twisted pair copper interfaces. The FRM220-E1-T1-SC002 can extend...FRM220-E1-T1-SC002MSRP: $339.00$245.00 -
FRM220-E1-T1-ST002 - E1 / T1 to multimode fiber media converter ST, 2Km, 1310nm managed
CTCUnion
MSRP: $339.00$245.00Note: Item has ST optical connectors (round). Picture is showing an SC based converter. Product description The FRM220-E1-T1-ST002 is a multi-mode 1310nm, 2Km range, dual fiber, E1 or T1 extender. A simple DIP switch sets unit for operation on E1...FRM220-E1-T1-ST002MSRP: $339.00$245.00 -
FRM220-E1-T1R-SC02A - T1 RJ45 100ohm (and E1 120ohm) to single strand BiDi Tx:850nm/Rx:1310nm multi-mode fiber media converter (T1 modem), 2Km
CTCUnion
MSRP: $339.00$245.00Product description The FRM220-E1T1R-SC02A is a Bi-Directional fiber media converter for G.703 T1 or E1 (DIP switch selectable)transmission/transport and features an RJ-48c connector for connection to 100 Ohm (or 120Ohms for E1) twisted pair wiring...FRM220-E1-T1R-SC02AMSRP: $339.00$245.00 -
FRM220-E1-T1R-SC02B - T1 RJ45 100ohm (and E1 120ohm) to single strand BiDi Tx:1310nm/Rx:850nm fiber media converter (T1 modem), 2Km
CTCUnion
MSRP: $339.00$245.00Product description The FRM220-E1T1R-SC02B is a Bi-Directional fiber media converter for G.703 T1 or E1 (DIP switch selectable)transmission/transport and features an RJ-48c connector for connection to 100 Ohm (or 120Ohms for E1) twisted pair wiring...FRM220-E1-T1R-SC02BMSRP: $339.00$245.00 -
FRM220-E1-T1-ST015 - E1 / T1 to singlemode ST fiber media converter 15Km, 1310nm managed
CTCUnion
MSRP: $369.00$265.00Note: Item has ST optical connectors (round). Picture is showing an SC based converter. Product description The FRM220-E1-T1-ST015 is a single-mode 1310nm, 15Km range, dual fiber, E1 or T1 extender. A simple DIP switch sets unit for operation on E1...FRM220-E1-T1-ST015MSRP: $369.00$265.00 -
FRM220-E1-T1R-SC20A - T1 and E1 RJ45 to single strand WDM BiDi Tx:1310nm/Rx:1550nm fiber media converter (T1 modem), 20Km
CTCUnion
MSRP: $389.00$275.00Product description The FRM220-E1T1R-SC20A is a Bi-Directional fiber media converter for G.703 T1 or E1 (DIP switch selectable)transmission/transport and features an RJ-48c connector for connection to 100 Ohm (or 120Ohms for E1) twisted pair wiring...FRM220-E1-T1R-SC20AMSRP: $389.00$275.00 -
FRM220-E1-T1R-SC20B - T1 and E1 RJ45 to WDM single strand BiDi Tx:1550nm/Rx:1310nm fiber media converter (T1 modem), 20Km
CTCUnion
MSRP: $389.00$275.00Product description The FRM220-E1T1R-SC20B is a Bi-Directional fiber media converter for G.703 T1 or E1 (DIP switch selectable)transmission/transport and features an RJ-48c connector for connection to 100 Ohm (or 120Ohms for E1) twisted pair wiring...FRM220-E1-T1R-SC20BMSRP: $389.00$275.00 -
FRM220-GFOM04-AD - 4E1/ T1 with full Gigabit Ethernet and redundant SFP optic link Fiber Optic Multiplexer - AC and DC powered
CTCUnion
MSRP: $895.00$695.00* FRM220-GFOM04-AD INCLUDES a standalone casing with console port and embedded AC and DC48V power supplies SFP transceivers are NOT included in the unit price. You can purchase Gigabit rated SFPs here Product description The FRM220-GFOM04-AD fiber...FRM220-GFOM04-ADMSRP: $895.00$695.00
