FRM220-E1-T1-ST015 - E1 / T1 to singlemode ST fiber media converter 15Km, 1310nm managed

(No reviews yet) Write a Review
SKU:
FRM220-E1-T1-ST015
UPC:
FRM220-E1-T1-ST015
Availability:
Ships same day for orders placed before 3:30PM PST
MSRP: $369.00
$265.00
— You save $104.00

Description

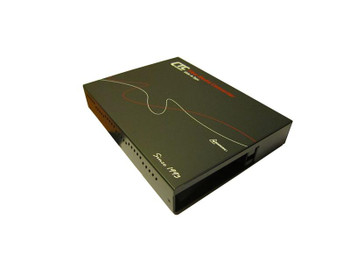

Note: Item has ST optical connectors (round). Picture is showing an SC based converter.

Product description

The FRM220-E1-T1-ST015 is a single-mode 1310nm, 15Km range, dual fiber, E1 or T1 extender. A simple DIP switch sets unit for operation on E1 120Ohms or T1 100Ohms twisted pair copper interfaces. The FRM220-E1-T1-ST015 can extend transparently over fiber any E1/T1 framed or unframed format signal. Unit supports local console, web-based and in-band management including powerful features like Dying Gasp, Remote-Monitoring-Status and Loop-Back-Test. Web and In-band features are available when unit is inserted into the FRM220 in-band managed fiber chassis.

The FRM220-E1-T1-ST015 E1 or T1 fiber extender is extremely versatile, being available in several versions of power supply: external AC adapter, embedded internal AC power, embedded internal DC neg. 48V power or dual combo embedded AC and DC power supply. Same model can also be installed in the FRM220 chassis, in matter of minutes. In an always changing and growing networking environment, such a versatile model allows network operators to switch to higher density and aggregation hubs without the need to purchase new fiber optic converters. The FRM220-E1-T1-ST015 media converter is one of the best choices of media converters for data carriers and service providers.

Technical specifications

Interfaces: RJ48c copper for E1 120Ohms or T1 100Ohms copper interface and single-mode 1310nm, 15km fiber port
Connectors: RJ-48c copper and dual ST optical connector
Standards: T1: ITU-T G.703, G.704, AT&T TR-62411, ANSI T1.40, E1: ITU-T G.703, G.704, G.706, G.732, G.823
Optical interface: 155Mbps supports Auto and Forced mode operation
Front LEDs: PWR, FX-Link, E1/T1 SIG, Test, SYN, RD, TD, AIS
Power: External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug
Temperature: 0 50°C (Operating); 0 70°C (Storage)
Humidity: 20 80% non condensing (Operating); 0 90% (Storage)
Consumption: less than 4W
Dimensions(WxDxH): 85.6mm x 122.6mm x 20mm
Weight: 340g (without AC adapter)
Compliance: CE, FCC Class A
MTBF: 65,000 hours


Additional information on FRM220-E1-T1-ST015 converter: PDF Datasheet; PDF Installation Manual.

Note:
The FRM220-E1-T1 model can be manufactured on order also with FC or LC optical connector. For such options please contact our sales department by e-mail or telephone.

View AllClose

Warranty Information

2 years
View AllClose

Additional Information

Interface Type:
T1
Interface Type:
E1
Management:
web-managed
Management:
SNMP
Wavelength:
1310nm
Tx Distance:
15Km
Power Type:
separate AC adapter included
Connectors:
ST
Connectors:
RJ48c (E1/T1)
Cable Type:
duplex
Cable Type:
9/125um single-mode
