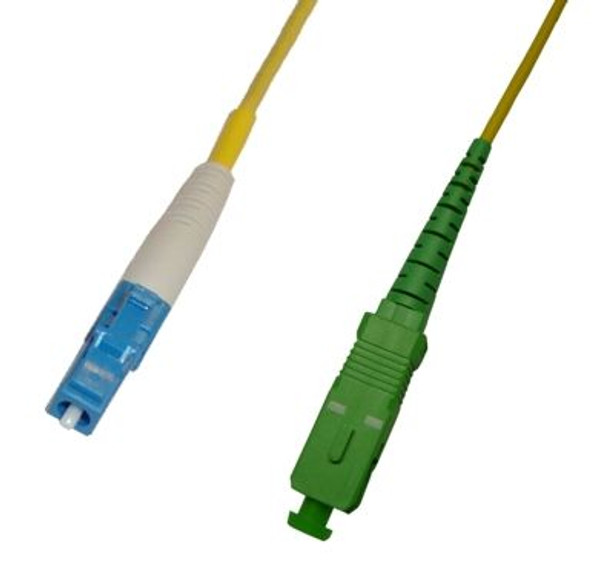

SCA-LCP-SS9 - SC/APC to LC/UPC, singlemode 9/125 simplex fiber optic patch cord cable
(No reviews yet)
Write a Review
- SKU:
- SCA-LCP-SS9-1M
- UPC:
- 811704012905
- MPN:
- SCA-LCP-SS9
- Availability:
- Ships same day for orders placed before 3:30PM PST
Description
Product description
Singlemode 9/125 um core, simplex, zipcord style, SC/APC to LC/UPC fiber optic patchcord. APC stands for Angle-polished Physical Contact (8 degrees angle ferrule cut) for very high return loss (>65dB) and UPC stands for Ultra Physical Contact and represents one of the best ways of polishing for fiber ferrules, assuring a return attenuation greater than 50dB for singlemode connections.
Technical specifications:
- typical insertion loss: 0.2 dB
- return loss > 65 dB
- fiber jacket 1.8mm, yellow color, zipcord style
- operating temperature: -40 to +75 Celsius degrees
- each cable assembly is manually tested and verified
- each cable assembly is individually sealed and labeled
- label mentions measured loss on patch cord
Technical specifications:
- typical insertion loss: 0.2 dB
- return loss > 65 dB
- fiber jacket 1.8mm, yellow color, zipcord style
- operating temperature: -40 to +75 Celsius degrees
- each cable assembly is manually tested and verified
- each cable assembly is individually sealed and labeled
- label mentions measured loss on patch cord
Warranty Information
Product is guaranteed free of manufacturer defects. If any fault caused by manufacturing process is found, product is replaced under warranty. Faults of manufacturing do not include misuse or normal wear and tear of the product.
View AllClose
Additional Information
UPC: |
811704012905 |
Fiber Type: |
single strand single-mode |
Connectors: |
LC |
Connectors: |
SC/APC |
Cable Type: |
simplex |
Cable Type: |
9/125um single-mode |
