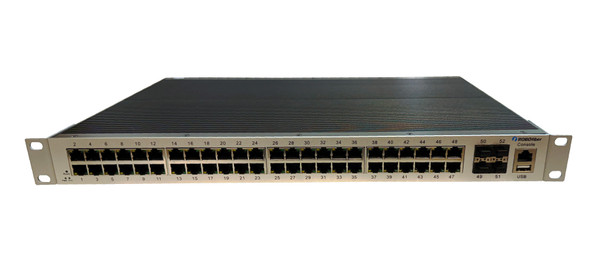

RB10X-4804M-PSE 48x Gigabit Ethernet and 4x 10G ports high power Layer 3 Industrial managed POE++ switch (900W budget)
- SKU:
- RB10X-4804M-PSE
- UPC:
- 811704018136
- MPN:
- RB10X-4804M-PSE
- Availability:
- Ships same day for orders placed before 3:30PM PST
Quantity Discount
| Product price | $1,995.00 |
| Buy 5 or above | $1795.50 |
Description
Product description
The RB10X-4804M-PSE is a L3 Ethernet network managed switch, supporting IPV4/IPV6 management, dynamic routing at full line-speed forwarding, with thorough security features, including strong ACL/QoS policies and easy and comprehensive management features. Switch supports multiple network redundancy protocols: STP/RSTP/MSTP (<50ms) and ERPS ring (convergence time<20ms, improving link backup and network reliability. The RB10 managed series have high reliability and strong management features, making the product series suitable for multiple industries such as transportation, power or telecommunications.
The RB10X-4804M-PSE has 48 RJ45 Gigabit Ethernet 10/100/1000Base-Tx ports with PoE++ functions & 4x 1G/10GBase-X SFP+ slots for fiber uplink connectivity. The Layer 3 managed switch has a 19" 1RU height metal format ideal for security commercial applications.
RB10X-4804M-PSE is easy to install and offering powerful functions such as VLAN, QoS or PoE PD device reset options. Ports #1 to #48 can deliver up to 30W per port, being IEEE802.3af/at compatible. The total PoE budget available is 900W. Switch also offers 4kV surge protection on all TP ports. The switch eliminates the need for individual power sources for devices in the network, saving on costs for power cables and avoiding power outlet availability issues.
Fiber Optic Connectivity
The RB10X-4804M-PSE's design allows connectivity at 10G speed over fiber optic networks thanks to the four additional SFP+ slots running 1G/10GBase-X SFPs. Switch AC power is provided through a common AC 3-wire C13 power cord and redundant DC48V 3 pin power block.
Technical Specifications
| RB10X-4804M-PSE | |
| Fixed Port | 48x10/100/1000M RJ45 port (data/power) 4x100/1000M/2.5G/10G SFP+ |
| PoE Ports | 1-48 port supports IEEE802.3af/at, max 30W/port PoE out |
| Console port | 1x console port |
| Reset Key | 1 |
| PoE Pin | af/at: 12+ 36- |
| PoE Bridge | max 900W PoE PD budget |
| CPU | MIPS-34Kc 800GHz |
| DDR | 4G DDR3 |
| FLASH | 512MBytes |
| RAM | 512MBytes |
| Bandwidth | 176Gbps |
| Packet Forwarding | 131Mpps |
| MAC | 32K |
| Buffer | 12Mbit SRAM Packet Buffer |
| Jumbo Frame | Jumbo frame up to 12KB |
| VLAN Address | 4K |
| Link Aggregation | Supports 128 trunk groups with up to 8 members per group |
| L3 Routing | IPV4 supports 12K; IPV6 supports 12K; |
| QoS Queue | 8 |
| Transmission Distance | 10BASE-T: Cat3,4,5 UTP (≤250 meters) 100BASE-TX: Cat5 or later UTP (150 meters) 1000BASE-TX: Cat6 or later UTP (150 meters) SFP: 100M/1G/10G single-mode multi-mode optical module, the maximum distance is ≤120km (depending on the optical module) |
| LED Indicator | PWR: Power LED SYS: System LED 1-48: 10/100/1000M Network connection indicator 49-52: 10G SFP connection indicator |
| Power | Built-in power AC: 100-240Vac 50-60Hz 8A, max 960W; DC: 36-60V/20A |
| Operating Temperature/Humidity | -40～+75°C; 5%～90% RH Non condensation |
| Storage Temperature/Humidity | -40～+85°C; 5%～95% RH Non condensation |
| Product / Packing Size (LxWxH, mm) | 440 x 300 x 44 / 553 x 403 x 93 |
| Net Weight/Gross Weight (kg) | 3.9kg/4.6kg |
Additional information on RB10X-4804M-PSE switch:
PDF Datasheet and PDF User Guide
Additional Information
Interface Type: |
Fast Ethernet |
Interface Type: |
Gigabit Ethernet |
Interface Type: |
10G |
Management: |
web |
Management: |
SNMP V1/V2/V3/ |
Management: |
CLI/SSH/Telnet |
Tx Distance: |
100m |
Power Type: |
AC power cord included |
Connectors: |
RJ45 (Ethernet) |
PoE Output: |
15.4 Watts/port |
PoE Output: |
30 Watts/port |
PoE Output: |
90 Watts/port |
Type: |
Layer 2 & Layer 3 |
Features: |
9K Jumbo frame support |
Features: |
19" rack mountable (optional) |
