EC3805F - Managed Fiber Gateway w/ 4 port Router and BiDi single strand type A T:1310/R:1550nm 20Km uplink for FTTH applications

(No reviews yet) Write a Review
SKU:
EC3805F
UPC:
EC3805F
Availability:
Ships same day for orders placed before 3:30PM PST
On Sale

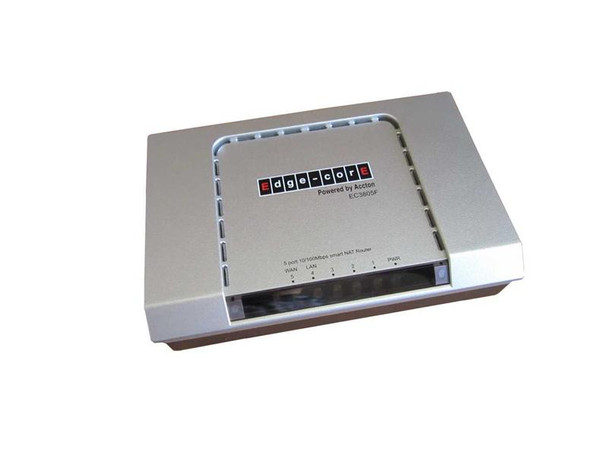

  • EC3805F - Managed Fiber Gateway w/ 4 port Router and BiDi single strand type A T:1310/R:1550nm 20Km uplink for FTTH applications
  • Rear view of EC-3805F with 4 LAN ports and fiber uplink port for BiDi connectivity

Quantity Discount

Product price $39.00
Buy 10 or above $35.10
MSRP: $155.00
Now: $39.00
Was: $45.00
— You save $116.00

Description

Can be used as an A type BiDi fiber media converter (Tx:1310/Rx:1550nm, 20Km), but with a 4 port switch INCLUDED!
Match this unit with FMC-10-100-SC20B or FRM220-10/100I-SC20B or any other B type Fast Ethernet fiber port!
FINAL SALE! CALL US for pricing on volume!



Product description

EC3805F is a low cost Fiber Gateway designed for Fiber-To-The-Home (FTTH) applications. The Fiber Gateway provides 100Mbps of full duplex connection for subscribers through its single strand single-mode WDM up-link port. The gateway offers a router with 4 Fast Ethernet RJ45 copper ports for the local networking. The unit provides very useful mass deployment features 802.3ah support and remote provisioning and management. Bandwidth control features allow Service Providers to better manage their network load and QoS Features and full NAT and 802.1Q VLAN support allow deployment of future triple play services.

Important: The EC3805F Fiber Gateway is designed for Service Providers, CLECs or MSOs that intend to get advantage of fiber and provide high quality Triple Play services for their subscribers. Pricing for such customers is special and customization is available and can be discussed on a case by case approach. Please do not hesitate to contact us with inquiries about this FTTH Fiber Gateway.

Product Features

  • Fiber interface runs 100Mbps upstream/downstream
  • 4 port Ethernet switch with 10/100 ports and Auto MDI/MDI-X cable detection
  • hardware NAT router (wirespeed throughput)
  • Bandwidth control ingress/egress: 256k | 512k | 2M | 5M | 10M | 100Mbps
  • Firewall features: NAT with VPN pass-through, DMZ, 4K NAT sessions
  • IGMP Snooping V1/V2, IGMP Throttling
  • DHCP Client/ Option 82/ Server
  • web based management, SNMP
  • remote firmware upgrade



Hardware Technical Specifications

LAN Interfaces: Four RJ45 copper IEEE 802.3u 10/100Base-TX
WAN interface: Single-mode single strand WDM transceiver Tx:1310nm/Rx:1550nm
Back LEDs: PWR, WAN, LAN1~4
Power: External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug
Temperature: 0~50°C (Operating); 0~70°C (Storage)
Humidity: 20 80% non condensing (Operating); 0 90% (Storage)
Consumption: less than 4W
Dimensions(WxDxH): 147mm x 94mm x 30mm
Management: web-base, SNMP
Compliance: CE, FCC Class A
MTBF: 57,000 hours



Additional information on EC3805F Fiber Gateway: PDF Datasheet; PDF Installation Manual.

Note: There is another version of the EC3805F gateway without the BiDi fiber uplink port, but instead a simple 10/100Base-TX port:

  • EC3805 - gateway with 10/100Base-TX copper uplink port (instead of fiber)

For such model, please contact us for pricing and availability.

View AllClose

Warranty Information

2 years
View AllClose

Additional Information

UPC:
811704012875
Interface Type:
Fast Ethernet
Fiber Type:
single strand single-mode
Management:
web-managed
Management:
SNMP
Wavelength:
T1310/R1550nm
Tx Distance:
20Km
Power Type:
separate AC adapter included
Connectors:
SC
Connectors:
RJ45 (Ethernet)
Cable Type:
simplex
Cable Type:
9/125um single-mode
Features:
IGMP snooping
Features:
802.1q VLAN
Features:
port based VLAN
Features:
802.1p CoS
Features:
bandwidth limiting
View AllClose
