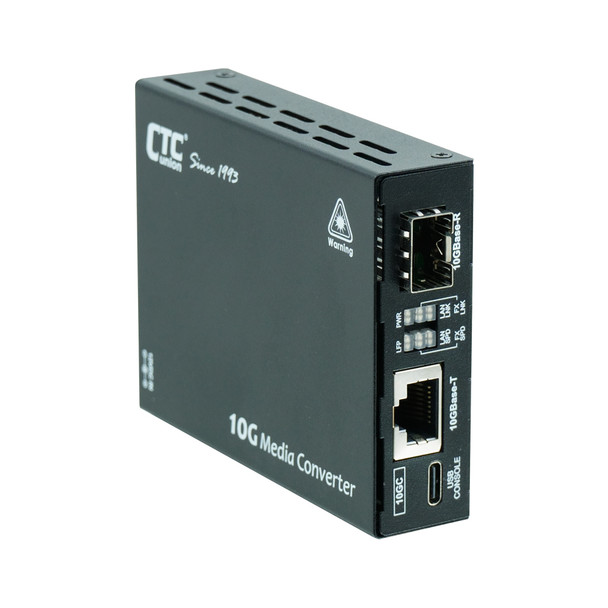

XMC-10GC 10G/5G/2.5G/1G/100M Copper to 10GBASE-R SFP+ Media Converter, USB managed

(No reviews yet) Write a Review

SKU:: XMC-10GC
Availability:: Ships same day for orders placed before 3:30PM PST

MSRP: $399.00

$255.00

— You save $144.00

Current Stock: 2

Quantity:

Description
Warranty Information
Additional Information
0 Reviews

Description

Product description
The XMC-10GC fiber media converter is an extremely versatile fiber media converter equipped with one 10G/5G/2.5G/1G/100M Ethernet copper port (RJ45 Cat6a or Cat 7 twisted pair cabling, backwards compatible with 1000Base-T Gigabit Ethernet and 100Base-TX Fast Ethernet copper ports) and one 10G-Base-R SFP+ slot for 10G fiber Ethernet uplink. Any 10GBase transceiver (multi-mode or single-mode) or DWDM/CWDM SFP+ module can be installed in the SFP+ slot of XMC-10GC converter. Also copper direct attach cables (DAC's) are supported by the XMC-10GC converter. Unit supports management through an USB-C separate console port. The media converter supports copper port speed auto-negotiation Ethernet 10G/5G/2.5G/1G/100M TP connections.

Technical specifications

Interfaces:	One SFP+ slot supporting 10G Ethernet data rate 10G-Base-R and one RJ45 10G/5G/2.5G/1G/100M auto-negotiating (Cat6a/Cat7) twisted pair cable port. RJ45 port supports Gigabit 100Base-T and Fast Ethernet 100Base-TX connections
Connectors:	SFP+ slot with LC optical connectors, supporting SR, LR, ER, ZR, CWDM or DWDM optics as well as DAC copper and optical cables and RJ45 copper port
Front LEDs:	PWR, LAN Link, FX Link, LAN Speed, FX Speed, FLP
Power:	separate 90-240V AC power supply adapter
Temperature:	0~45°C (Operating); -10~70°C (Storage)
Humidity:	5~95% non-condensing
Consumption:	less than 10W
Dimensions(WxDxH):	96.5mm x 73.4mm x 23mm
Weight:	280g
Compliance:	CE, FCC, LVD, RoHS
MTBF:	65,000 hours

Additional information on XMC-10GC converter: PDF Datasheet; PDF Installation Manual.

Note: To populate the 10G Ethernet media converter with optical modules, please visit the SFP+ transceiver module page. For DAC cables please visit the 10G Direct Attach Cable page. For any questions please do not hesitate to contact our sales department by e-mail or telephone.

View AllClose

Warranty Information

2 years

View AllClose

Additional Information

Interface Type:	10G
Management:	local console
Transceiver Format:	SFP
Power Type:	AC 90-240V embedded PSU
Connectors:	RJ45 (Ethernet)
Connectors:	USB-C
Connectors:	SFP slot
Features:	16K Jumbo frame support
Features:	wall mountable
