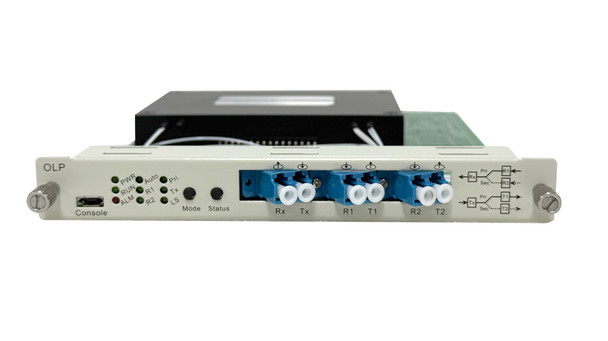

ROC3-OLP35 - Optical 1:1 Protection Card for ROC3 Chassis, duplex path, SM fiber, managed
- SKU:
- ROC3-OLP35
- MPN:
- ROC3-OLP35
- Availability:
- Not a stock item, ships in 15 days from ordering date.
Description
Product description
ROC3-OLP35 and ROC3-OLP35S are perfect complements for the ROC3 optical transport platform. Cards provide optical protection for either duplex (OLP35) or simplex (OLP35S) fiber circuits, independent to any protocol or telecom transmissions and strictly based on the physical link of the optical fiber. The ROC3 OLP cards provide very fast fault protection and employ 1:1 optical protection for minimum insertion loss, covering any wavelengths 1260nm to 1620nm. The OLP cards also have their own internal laser source used for probing the fiber path and automatically restoring primary optical fiber circuit when deemed operational.
The ROC3-OLP35 cards fit into any of the ROC3 chassis: either ROC-CH04, ROC-CH08 or ROC-CH16 model. There are many other optical cards for the ROC3 platform, all can be managed via ROC3-NMC card. Among the optical cards available for ROC3 platform we can find transponders for 100G, 25G, 10G and even lower speeds such as Gigabit or Fast Ethernet, CWDM and DWDM mux demux cards going as far as 40 channels in an AAWG configuration (ROC3-DWDM-AAWG) or ROC3-OLPS35 1:1 optical protection cards. Many other function cards, such as EDFA amplifiers, DCM compensation modules, Optical Switches, Variable Attenuators or FWDM cards are available for the ROC3 chassis. Platform is dimensioned for 19" rack mounting and has 23" rack adapting brackets available on demand.
The ROC3 chassis series provide redundant power supply system with "hot swap" feature, to provide continuous smooth operation of the units installed. The ROC3-OLP35 cards are also hot-swappable, settings are stored in the ROC3-NMC management card. In case of a protection card malfunction, card can be removed and a newly inserted card will automatically be programmed by the NMC card with previously saved configuration, so the chassis keeps running unimpeded and without any programming effort from technician to recommission the new card.
Technical specifications
| Chassis Compatibility: | Installs in any of the ROC3 chassis: 16 slots, 8 slots or 4 slots chassis |
| Operating Wavelength Range: | 1260nm ~ 1650nm |
| Test Wavelengths: | 1310nm and 1550nm |
| Insertion Loss: |
<1.5dB for Tx and <1.5dB for Rx paths |
| Switching Time: | less than 25ms |
| Crosstalk / Return Loss: | less than 50dB / 45dB |
| Temperature: | 0-50°C (Operating); 0-70°C (Storage) |
| Humidity: | 20~80% non-condensing (Operating); 0~90% (Storage) |
| Power Consumption: | <1W |
| Dimensions (WxDxH): | 160mm x 200mm x 21mm |
| Power Monitoring Range: | -40 to +23 dBm |
| Compliance: | CE Mark, FCC part 15 Class A |
| MTBF: | 150,000 hours |
Additional information on ROC3-OLP35 optical protection card:
PDF datasheet; PDF User Manual.
Features
Management: |
web-managed |
Interface Type: |
Duplex SMF |
Management: |
SNMP |
Management: |
local console |
Management: |
telnet |
Connectors: |
LC duplex |
