RBOLS-510 - Optical Laser Source for 1310/1490/1550nm with 10mW VFL included

(No reviews yet) Write a Review
SKU:
RBOLS-510
UPC:
811704017450
MPN:
RBOLS-510
Condition:
New

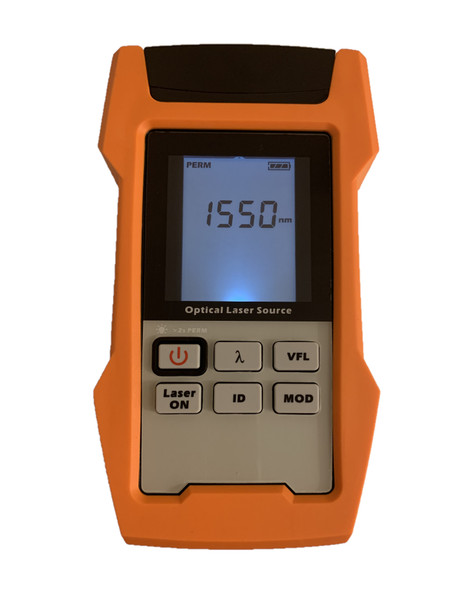

  • RBOLS-510 - Optical Laser Source for 1310/1490/1550nm with 10mW VFL included - front panel
  • RBOLS-510 - Optical Laser Source for 1310/1490/1550nm with 10mW VFL included - top connectors
  • RBOLS-510 - Optical Laser Source for 1310/1490/1550nm with 10mW VFL included - top SC connector and VFL
  • RBOLS-510 - Optical Laser Source for 1310/1490/1550nm with 10mW VFL included - rear battery panel view
  • RBOLS-510 - Optical Laser Source for 1310/1490/1550nm with 10mW VFL - pouch and 2.5mm adapter
  • RBOLS-510 - Optical Laser Source for 1310/1490/1550nm with 10mW VFL - carton package
MSRP: $699.00
$225.00
— You save $474.00

Description

The RBOLS-510 Optical Laser Source is a great to have tool for fiber optic plant managers and fiber optic technicians. An Optical Laser Source is used to accurately determine the Insertion Loss (IL) of each fiber segment measured. RBOLS-510 is designed to work best with the RBOPM-500 power meter. Both units support Wave ID feature. The Laser Source unit has a backlit LCD display and protective orange rubber casing similar with the RBOPM-500 design.

RBOLS-510 is factory calibrated for 1310nm, 1490nm and 1550nm wavelengths Singlemode fiber operation. Variation of the source level has a stability of +/- 0.05dBm for 1 hour of operation.

Three AA batteries are required to operate the laser source, batteries are NOT included. Standard ferrule connector has 2.5mm for the OLS embedded tool suitable for SC, ST and FC optical connectors. SC connector is default and can be replaced for FC with included adapter. Embedded VFL has 10mW of 625nm red visible light.

The RBOLS-510 is one of the best available Optical Laser Sources on the market, using highest quality laser components. It is a purchase that allows measuring of active fibers efficiently, being an asset for any fiber professional user.

Features

  • 3 wavelengths + VFL
  • High stabilization, built-in optic isolator
  • 270Hz, 1KHz, 2KHz modulation output
  • Wave ID output, works with ROBOfiber RBOPM-500
  • Built in VFL 10mW
  • Energy save mode

Technical Specifications

Model   RBOLS-510
LCD Display 1310/1490/1550nm + VFL 10mW
Stability +/-0.05dB/1 hour; +/-0.1dB/8 hours (at 23 deg. Celsius)
Calibrated Wavelengths  1310nm / 1490nm / 1550nm
Output Power > - 6dBm @ 1310nm/1490nm/1550nm
Optical Connector SC & 2.5mm VFL
Automatic Power Off Idle for 10 minutes or at Low battery warning
Modulation 270Hz, 1KHz, 2KHz
Built-In VFL 10mW
Wave ID Supported (can be matched with RBOPM-500 power meter)
Battery Life AA x 3, 50+ hours of operation (batteries NOT included)
Power supply AA x 3 or USB cable 5V, 500mA, can charge AA size rechargeable units
Size 170mm * 97mm * 38mm
Weight 380g without batteries
Storage Temperature -20~+60 Celsius, humidity<90% non-condensing
Operating Temperature -10~+50 Celsius, humidity<90% non-condensing
Warranty 2 years



Additional information on the RBOLS-510 Optical Laser Source: PDF Datasheet



View AllClose

Warranty Information

2 years Product is guaranteed free of manufacturer defects. If any fault caused by manufacturing process is found, product is replaced under warranty. Faults of manufacturing do not include misuse or normal wear and tear of the product.
