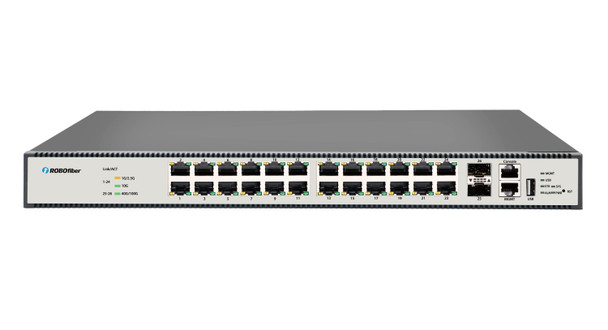

RB100-2410G2Q - 24x 1G/2.5G/5G/10GBase-T RJ45 ports, 2x 100G QSFP28 ports Layer 3 managed routing switch, rack 19"

Product description
The RB100-2410G2Q switch is a high-performance Layer 3 switch that supports multi-rate access at 1G/2.5G/5G/10G speeds on copper and offers two 40G / 100G uplink routing ports. This switch is designed to meet the high-density and high-bandwidth requirements of next-generation enterprise networks, data centers, and metropolitan area networks. It is suitable for telecom network operators, as well as the aggregation or access layers in campus Ethernet networks and can serve as a connection layer in data centers or as the core layer for small and medium-sized enterprises, providing extensive server access solutions.

The RB100-2410G2Q offers a comprehensive set of service features, including Layer 2, Layer 3, VXLAN, OAM/APS, and others, along with robust security and flow control features, hardware-based NetFlow, and high-precision clock capabilities. The switch supports elastic stacking, allowing multiple devices to be virtualized into a single logical entity. This feature facilitates port expansion and switching capacity increases while enabling unified management, upgrades, and maintenance of multiple devices.

Key Features
Equipment Stability
IPv4/IPv6 dual protocol stack platform based on Linux operating system
Multiple link redundancy and network redundancy protocols such as STP / RSTP / MSTP / ERPS / LACP

Stackable
Combines the processing power of multiple switches into a single logical device.
When a switch in the stack system fails, traffic can be automatically switched to other switches, network availability and redundancy.
Support Stacking simplifies the management process.
Administrators only need to manage one logical device.

Perfect safety mechanisms
ACL security filtering mechanism, which can provide security control functions based on MAC, IP, L4 port
ARP attack automatic protection and user blocking functions
DHCP attack automatic protection based on Mac Address and user blocking functions
DHCP-snooping/IP-source-Guard/802.1X and other security features
Link protection functions such as BFD, FlexLink, LACP
Remote loop detection function
Remote user authentication based on Tacacs+, Radius, and Local user authentication

Powerful QoS capabilities
Port speed and flow speed limit function
Classification based on service flow and Qos flow control function
Queue scheduling algorithms such as SP/WRR/SP+WRR
Port-based and service flow-based mirroring functions

Rich routing protocols
Static routes
Dynamic routing such as RIP, OSPF, BGP,
IPV4/IPV6 dual protocol stack, support RIPng, OSPFv3

Easy-to-use network management functions
CLI based on RS232 serial port, Telnet and SSHv2
WEB-based configuration and management, support SNMP V1/V2/V3
Remote upgrade or equipment through FTP and TFTP

Software Features (please check datasheet below for complete list)

VLAN: 4K Active VLAN, QinQ & Selective QinQ, GVRP, Private VLAN, Voice VLAN
Spanning Tree: 802.1D (STP) 802.1W (RSTP) and 802.1S (MSTP) BPDU guard, root guard and loopback guard
Multicast: IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave, MVR, IGMP filter, PIM-SM and PIM-DM
MAC Switching: Static Configuration and Dynamically Learning of MAC Address, Check and Delete MAC Address, MAC Address Aging Time, Limit on MAC Address Learning Number, MAC Address Filtering Function, Black-Hole MAC Items
IPv4: Static Routing, RIP V1/V2, OSPF and BGP, Policy Routing, Load Balance through Equal-Cost Routing, BFD for OSPF and BGP
IPv6: ICMPv6, DHCPv6, ACLv6 and IPv6 Telnet , IPv6 neighbor discovery, Path MTU discovery ,MLD v1/2, MLD snooping , IPv6 static routing, RIPng, OSPFv3 and BGP4+, Manual Tunnel, ISATAP Tunnel and 6-To-4 Tunnel
Accessories: Power cord, rackmount kits, console cable
QoS: CAR, HQoS, MAC/IP/TCP/UDP/ VLAN/ COS/ DSCP/ TOS based QoS, 802.1P/ DSCP priority re- labeling, SP, WRR and “SP+WRR”, Tail-Drop, WRED, flow monitoring and traffic shaping
Security: Port isolation, Port security, and “IP+MAC+port” binding, MAC sticky DHCP Snooping and option 82, DAI & IP source guard, PPPoE+, IEEE 802.1x, Radius and BDTacacs+ L2/L3/L4 ACL flow identification and
filtration, Anti-attack from DDoS, TCP’s SYN Flood, UDP Flood, etc. Broadcast/multicast/unknown unicast storm-control MD5, SHA-256, RSA-1024, AES256, etc.
Reliability: Static/LACP link aggregation, ISSU uninterrupted system upgrade; Protection Including EAPS and ERPS, VRRP/HSRP, Ethernet OAM 802.3ah/802.1ag/ITU-Y.1731, GR for OSPE and BGP, BFD for OSPF and BGP
Management: Console, Telnet, SSH v1/2, HTTP, HTTPS SNMP v1/v2/v3, RMON TFTP, FTP, SFTP NTP ZTP (Zero Touch Provisioning), SPAN, RSPAN
Environment: Operating temperature/humidity: 0°C -50°C ,10%-90% non-condensing
Storage temperature/humidity: -20°C -70°C , 5%-95% non-condensing
Certification: CE, FCC, ROHS

Specifications

Additional information on RB100-2410G2Q switch: PDF Datasheet and PDF User Guide
