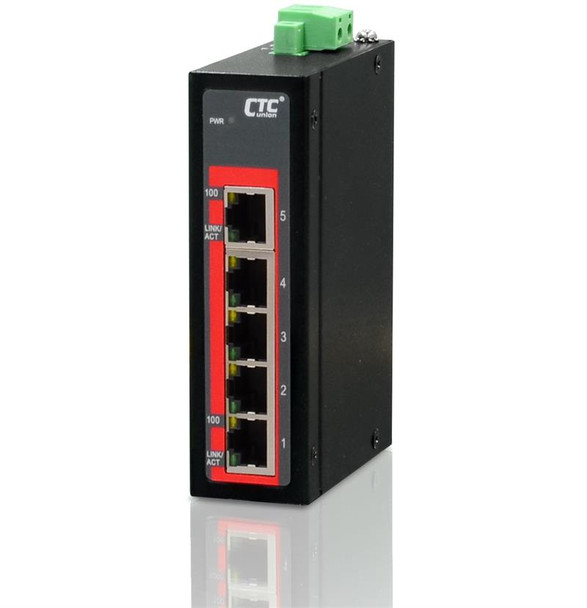

IFS-500C-E 5 port 10/100Base-TX Fast Ethernet compact Industrial switch, DIN rail mount, hardened extreme temperature

Product description
This model is a compact sized, non-managed industrial grade Fast Ethernet switch with 5 10/100Base-TX ports that provide stable and reliable Ethernet transmission. Housed in rugged DIN rail or wall mountable enclosures, switch is designed for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and is also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications. Standard operating temperature range models (-10 to 60°C) and wide operating temperature range models (-40 to 75°C) fulfill the special needs of industrial automation applications.
All Industrial Ethernet switches include a DIN rail mounting kit and a small power jack adapter for optional external AC adapter.


Features

• Wide range input power 12/24/48VDC (9.6~60VDC), or AC24V (18~36VAC)
• IP30 rugged metal housing and Fanless
• Compact size for easy installation
• Wide operating temperature -40 ~ 75°C
• Provides broadcast storm protection
• Very low power consumption
• Supports flow control
• CE, FCC,and EN50121-4 for railway traffic certification
• Industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
• 5-Port 10/100Base-T(X)

Additional information on IFS-500C-E extended temperature range model: PDF datasheet; PDF Installation Manual.
