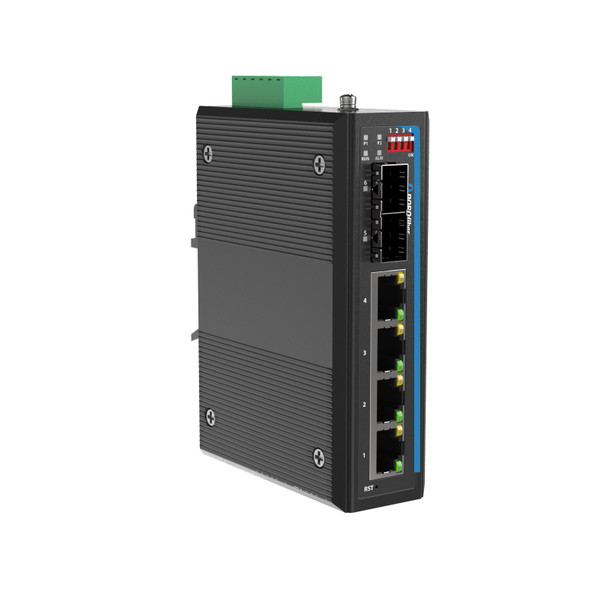

HGW-402LM - 4x RJ45 + 2x SFP ports Gigabit Ethernet Managed Industrial fiber switch, DIN rail mount, -40 to +75 Celsius

Product description
The HGW-402LM is a 6-port Gigabit Ethernet Managed Switch with 4-port 10/100/1000Base-T(X) and 2-port 100/1000Base-X SFP slot for optical fiber providing stable and reliable transmission for Industrial Ethernet connections. HGW-402LM is hardened for extreme operating temperatures: -40 to +75 Celsius. The managed switch supports a variety of Ethernet functions, including STP/RSTP, layer 2 Ethernet functions such as VLAN, QoS, Security, bandwidth control, port mirroring and is housed in IP40 rated rugged metal housings designed to operate in difficult conditions, including mechanically and electrically extreme environments. All Industrial switches have strong surge protection (4kV~8kV) per port, depending on models and strict compliance with IEC and EN standards for industrial grade equipment.

All Industrial Ethernet switches include a DIN rail mounting kit.

Features

• Redundant dual DC input Power 10-56VDC
• IP40 rugged metal housing
• Wide operating temperature -40~75°C
• Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 Certified
• 4-Port 10/100/1000Base-T(X) copper ports and 2x 100/1000Base-X SFP slot
• Reversed power polarity protection
• STP, RSTP for redundant cabling
• QoS, CoS, bandwidth control for Ingress and Egress
• Supports 8kV surge protection on all TP ports
• Supports IEEE 802.1Q Tag VLAN and port VLAN
• IGMP snooping V1
• Software upgrade via web browser
• Port mirroring, Cable diagnostic
• Web based management, SNMP v1

Additional information on HGW-402LM model: PDF datasheet; PDF Installation Manual.
For Gigabit Ethernet SFP selection please visit the SFP transceiver page. For any questions, please contact our sales department by e-mail or call us.
