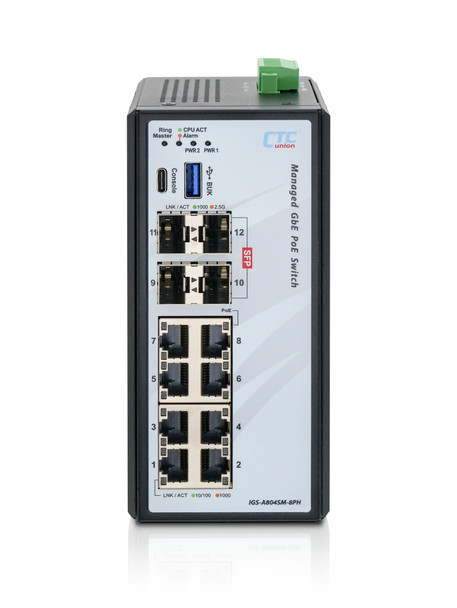

IGS-A804SM-8PHE - 8 copper + 4 SFP port managed cyber-hardened Gigabit Ethernet Industrial switch, PoE 240W, extreme temperature

Product Description

The industrial cyber-hardened managed PoE switch IGS-A804SM-8PHE is one of our new generation designs and comes with 8 gigabit UTP ports, each complies with IEEE802.3af/at up to 30W PoE+ standard. Equipped with 4x 100M/1G/2.5G SFP slots for fiber optic connectivity for extended transmission distance, fanless design, high MTBF, 4KV surge protection and supports wide temperature operation, 48VDC redundant power input, switch is designed to comply with latest cybersecurity regulations. Unit is designed for heavy-duty applications in harsh environments such as industrial factory automation, data centers, smart transportation systems, military and utility market applications beyond environmental conditions of the commercial products. IGS-A804SM-8PHE is a wide operating temperature range model(-40 to 75°C).

Features

• Compliant with the IEC 62443-4-2* industrial cybersecurity standards
• 48VDC (44~57VDC) redundant dual power input (IGS-A804SM-8PHE)
• Provides 8-port IEEE 802.3af / 802.3at PoE+ output (30W per port, total 240W) (IGS-A804SM-8PHE)
• Compliant with the IEC 62443-4-2* industrial cybersecurity standards
• Supports μ-Ring, ERPS, APS, MRP, MSTP, RSTP, STP for Redundant Cabling
• Auto Checking and Auto Reset When PoE PD Fail
• EN50121-4, EN61000-6-2, EN61000-6-4, CE and FCC Certified
• 4KV Surge Protection for PoE, RJ45 and SFP Ports
• Supports Secure Boot
• μ-Ring for redundant cabling, recovery time<20ms in 250 devices
• Supports EMS Management

Additional information on IGS-A804SM-8PHE series: PDF datasheet.
For SFP transceiver options please visit our SFP pages or contact our sales department by e-mail or call us.
