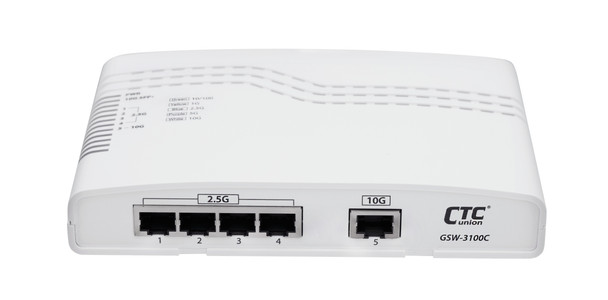

GSW-3100C - 10G Ethernet CPE switch 4x 1G/2.5G RJ45 + 1x 10G RJ45 + 1x 1G/10G SFP+ L2 Managed with optional Cable Tray

Product description

CTC Union Technologies unveiled the brand new 10G CPE switch, GSW-3100C, which supports multigigabit technology for active Ethernet based FTTH applications. This new 10G CPE switch is designed with 4 RJ45 ports 10M/100M/1G/2.5Gbps and 1 port 10M/100M/1G/2.5G/5G/10Gbps RJ45 as well as 1 port 1G/10Gbps SFP+ slot for fiber optic connectivity. The GSW-3100C employs the same successful cable tray design, making installation process easier and protecting the excess fiber within the unit.

GSW-3100C new CPE leverages the strength of its chipset provider, which is a member of NBASE-T alliance, by enabling a multigigabit speed feature. Enterprise or residential users will be able to experience reliable and secure Ethernet high speed network access and also connect existing Cat5e/Cat6 cabling infrastructure with IEEE 802.11ac wave 2 or WiFi 6 devices, breaking through the limitation of 1Gbps data rate for content richer applications such as Cloud storage, 4K video streaming or HD/UHD teleconferencing.

CTC Union Technologies has adopted the new generation SoC single chip inside the GSW-3100C. Chipset is developed through highly circuit integration and manufactured using advanced wafer process. Therefore, GSW-3100C benefits of a low power consumption and cost-effective finished product adopting this SoC solution compared with the previous generation product which was the combination of multiple chips. However, The GSW-3100C continues supporting most popular Layer 2 feature sets with network management interfaces such as Web GUI and SNMP. The GSW-3100C also supports ZTP (Zero Touch Provisioning) function which is suitable for very large-scale deployments from operators or service providers. These device management features can avoid truck rolls and save OPEX for FTTH service providers.

Specifications

Interface LAN RJ-45 Port: 100M/1G/2.5G x 4 + 100M/1G/2.5G/5G/10G x 1
WAN Fiber Port: 1G/10G SFP+ x 1
Hardware Supports Auto-negotiation for 2.5G RJ45 Port (100M/1G/2.5G and Full/Half Duplex mode)
Supports Auto-negotiation for 10G RJ45 Port (100M/1G/2.5G/5G/10G and Full/Half Duplex mode)
Supports Auto MDI / MDIX auto-crossover for TP ports
Store and forward switching
8 megabits of integrated shared packet memory
Supports 16K MAC Address Table
Supports 10K Bytes Jumbo Frame size
Standard Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/FX
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5GBASE-T
IEEE 802.3z 1000BASE-X
IEEE 802.3ae 10GBASE-SR
IEEE 802.3x Flow Control
IEEE 802.1p QoS
IEEE 802.1Q VLAN Tagging
IEEE 802.1ad Q-in-Q Provider Bridges
IEEE 802.3ad Link aggregation
IEEE 802.1x Port based network access
IEEE 802.1D MAC Bridges/STP
IEEE 802.1w RSTP
IEEE 802.1s MSTP
IEEE 802.1ab Link Layer Discovery Protocol
IEEE 802.3az Energy Efficient Ethernet (EEE) function

VLAN Feature IEEE 802.1Q tagged VLAN (1K VLAN groups)
IEEE 802.1ad Q-in-Q VLAN
MAC Based VLAN
Private VLAN for port isolation
Link Aggregation &
Protection
Static trunk (SA, DA, IP, TCP/UDP port)
IEEE 802.3ad LACP
STP/RSTP
Loop Protection
QoS Feature Hard wired IEEE 802.1p 8 priority queue per port
Traffic scheduling based on Strict / WRR priority
CoS based traffic classification on switch port, VLAN ID, DSCP, TCP/UDP port
IEEE 802.1p priority tag remarking / DSCP remarking
Per port/queue based ingress/egress rate limit in steps of 1000kbps
Multicast/Broadcast/Unicast storm control with flooding control
Security Feature Static port security (MAC based)
Per port limited MAC learning
Port limited flooding of unknown MAC address on fiber uplink port
Port based/MAC based/single/multiple IEEE 802.1x access control
128 ACL rules based on L2~L4 information
IP/MAC binding
IP source guard & ARP inspection
HTTPs
IP Multicasting:
IGMP snooping v1/v2/v3, MLD snooping v1/v2
IGMP fast leave / query
IGMP filtering / throttling
Management:
Management via Web / HTTP
Support SNMP v1 & v2c, RMON I (1, 2, 3, 9 groups), RFC 1213 MIB (MIB-II) and Private MIB
Support dying gasp in trap message
Support DHCP client for IPv4/IPv6
Support DHCP Snooping
DHCP Auto Provisioning for firmware and configuration upgrade based on
．Option 60: Class identifier
．Option 66: Server IP
．Option 67: File name
．Option 254: File type
TFTP/HTTP based Firmware and configuration upgrade
Dual Bank Image
DNS client/proxy
Port mirroring
NTP client
UPnP
Power Input: AC/DC power adaptor, 12VDC/1A
Operating Temperature: 0~40°C
Storage Temperature: -25~70°C
Humidity: 5%~90% (non-condensing)
Certification: CE, FCC class A

Additional information on GSW-3100C: PDF Datasheet; PDF Manual.
