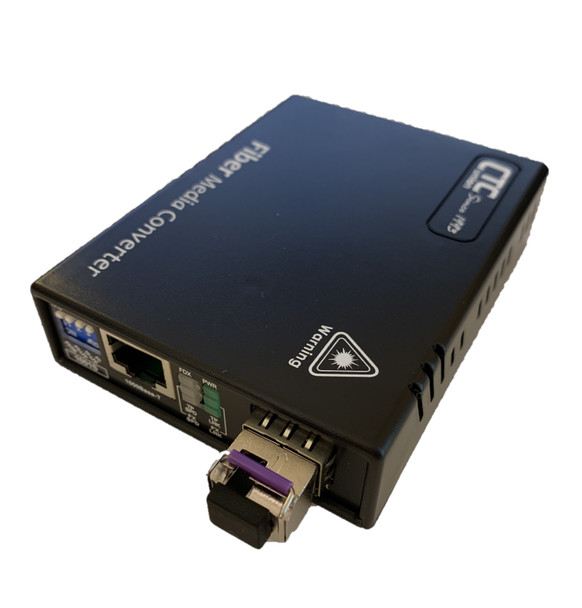

FMC-100S-LC02B Fast Ethernet multimode fiber media converter, single strand BiDi LC connector, 2Km
- SKU:
- FMC-100S-LC02B
- MPN:
- FMC-100S-LC02B
- Availability:
- Ships same day for orders placed before 3:30PM PST
Quantity Discount
| Product price | $120.00 |
| Buy 10 or above | $114.00 |
Description
AC 90-240V power adapter is included in carton package.
This converter is the direct replacement of FMC-10-100-SC02B converter, which is now EOL. It is a bundle between the FMC-1001S converter and the SFM-5002-WB transceiver. Each component can be purchased separately, but the bundle will be better priced. The FMC-1001S unit is set via DIP switches to operate only at 100M speed over fiber and thus be used as a single strand multimode fiber media converter. It must be matched with its counterpart, the FMC-100S-LC02A model or the older FMC-10-100-SC02A media converter.
Product description
The FMC-100S-LC02B converter has a dual speed Fast/Gigabit rate SFP slot (100/1000Base-X) for optical transceiver and one RJ-45 copper port with auto-negotiation 10/100/1000 and MDI/MDI-X features for the Gigabit Ethernet copper interface. Unit has DIP sw settings available for LFP function, speed and flow control on each port. On this configuration, DIP sw1 is activated so that speed over fiber is running 100Base-FX only and can accomodate the SFM-5002-WB transceiver.
LED indicators signal the power status of the converter, UTP port speed, Link, and duplex status, FX port Link and duplex status. Used with their compatible FMC-CH17 fiber optic chassis they can be aggregated up to 17 units in a 19" wide and 2U height space only.
Features
- 10/100/1000Base-T to 100/1000Base-X Converter
- Auto-Negotiation
- Auto MDI/MDIX
- Forward 2048 bytes (Max.) packets in switch mode (copper & fiber port in different speed)
- Forward 9k bytes in connector mode (fiber & copper port at the same speed)
- Provides DIP switch to set function
- Select fiber speed (100/1000M)
- Select LPF enable / disable
- Flow control enable / disable
- Supports Q in Q double tagged frame transparent
- Supports IEEE 802.1Q Tag VLAN pass thru
- Concentrated into FMC-CH17 chassis
Technical specifications
| Copper interface: | RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX compliant and IEEE 802.3ab 1000Base-T compliant |
| Optical interface: | 100Base-FX BiDirectional T:1550/R:1310nm for OM1/OM2 fibers - set by DIP sw1 to 100M speed only |
| Ethernet interface: | Supports 10/100/1000Base-T/TX, Full, Half duplex n-way (Auto-Negotiation). Supports Full, Half duplex, 10/100/1000 speed manual selection. Transmission Packet Rate for 10/100/1000Base-T/TX : 14880 per second /148800/1488000 per second. Copper TP cable 4 pair Cat. 5, 5e or 6 UTP |
| Optical connector: | LC connector (SFM-5002-WB transceiver INCLUDED) |
| Front LEDs: | PWR, LLF, Fiber Link, TP Link, Duplex, Speed |
| Power: | External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug AC 90-240V power adapter is included in carton package |
| Temperature: | 0~60°C (Operating); 0~70°C (Storage) |
| Humidity: | 20-80% non condensing (Operating); 0-90% (Storage) |
| Consumption: | less than 4W |
| Dimensions(WxDxH): | 73mm x 108mm x 23mm |
| Weight: | 160g (without AC adapter) |
| Compliance: | FCC part 15, Subpart B, Class A, ANSI C63.4:2003 CE EN55022:2006, Class A EN55024:1998+A1:2001+A2:2003 LVD: EN 60 950-1:2001 |
| MTBF: | 65,000 hours |
Additional information on FMC-100S-LC02B converter:
PDF Datasheet; PDF Installation Manual. Note: The FMC-100S-LC02B must be paired with the FMC-100S-LC02A to perate over one single strand of multimode fiber. For any questions please do not hesitate to contact our sales department by e-mail or telephone.
Additional Information
Interface Type: |
Fast Ethernet |
Fiber Type: |
single strand multi-mode |
Management: |
un-managed |
Wavelength: |
T1550/R1310nm |
Tx Distance: |
2Km |
Power Type: |
separate AC adapter included |
Connectors: |
LC |
Connectors: |
RJ45 (Ethernet) |
Cable Type: |
simplex |
Cable Type: |
50/125um multi-mode |
Cable Type: |
62.5/125um multi-mode |
Features: |
LFP Link Fault Pass through |
Features: |
wall mountable |
Features: |
DIP sw settings |
