Tainet
COMET-1608F G.shdsl.bis 2, 4 and 8-wire LAN Extender - up to 60Mbps Ethernet bridge modem - up to 4.9mi loop length on 26 AWG wires
- SKU:
- COMET-1608F
- UPC:
- 811704015272
- MPN:
- COMET-1608F
- Availability:
- Shipping in approx. 2 weeks from order date.
Quantity Discount
| Product price | $595.00 |
| Buy 10 or above | $535.50 |
Description

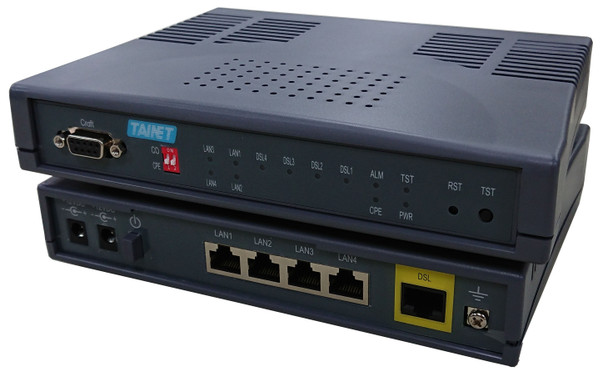

Important note: Although some pictures are showing two stacked units, price is per unit. You will need to purchase two units to have a working pair.
Product description
The Comet-1608F EFM/ATM modem is called an Ethernet Access Devices (EAD), Ethernet Media Data Converter (MDC) or Ethernet DSL Bridge/ Router/ Modem, using the latest G.SHDSL.bis standard. Such modem enables the transport of traffic from Ethernet interface with speeds of up to 60Mbps over EFM bonded 8 wires G.SHDSL.bis link.
Comet-1608F EFM/ATM modem supports high-speed dedicated symmetrical data transmission and utilizes DSL bandwidth. The automatic line rate adjusting can be up to 60Mbps over 8-wire copper line symmetrically. In the same family we have Comet-1602F, Comet-1604F and Comet-1608F models, all working as an Ethernet extender, with up to 8 wires (model 1608) that provide aggregated bandwidth up to 60Mbps. The Comet-160xF EFM/ATM series is an ideal solution for Telecom Carriers, Service Providers and business users. In order to reduce operation/management burden, based on ITU-T recommendation G.991.2 standards, Comet-160xF EFM/ATM series can control and monitor remote units via the Embedded
Operation Channel (EOC). Administrators of Comet-160xF EFM/ATM can configure modems through DIP-Switch, Console, Telnet (SSH), Web (HTTP/HTTPS), TR-069 or SNMP v1/v2c/v3 agent with ease.
➢ Point to point Ethernet extender over multiple copper wires
➢ EFM mode complies with ITU-T G.991.2 standard, TC-PAM 4/8/16/32/64/128 line coding and IEEE 802.3ah 2Base-TL bonding.
➢ ATM mode complies with RFC 1483 and RFC 2684 Multiprotocol over AAL5 bridged mode.
➢ 1, 2 or 4 pairs G.SHDSL.bis with 5.7Mbps per pair
➢ Supports extension rate up to 60Mbps over 4 pairs of copper
➢ CO and CPE mode configurable
➢ Easy installation by DIP-Switches, Console, Telnet (SSH), WEB GUI(HTTPS), SNMP (v1/v2c/v3) or TR-069
➢ Remote software upgrade for field-deployed units via TFTP or HTTP/HTTPS
➢ Ethernet switching and bridging with VLAN prioritization and QoS
➢ Router function supports NAT/PAT, DNS relay, DHCP client/server/relay, RIP1/RIP2, VRRP, Static route and OSPF, BGP
➢ Support TACACS+, security-link feature and DSL line protection for data transmission
➢ Console/Serial COM switchable, comply with RFC 2217, may connect via TCP client/server or UTP mode.
Technical specifications
| WAN Interface: |
RJ45 8 pins, SHDSL.bis ITU-T G.991.2 Annex AF/BG, ETSI 101 524 |
| LAN Interface: | 4 port 10/100Base-TX switch w/ auto MDI/MDI-X 802.1d transparent bridging |
| Networking features: | - IEEE 802.3x flow control - IEEE 802.1d transparent bridge function - IEEE 802.1w RSTP for loop prevention - IEEE 802.1q VLAN tagging, up to 4094 VLAN and VID - IEEE 802.1p QoS with priority queues facility - Bridge filter function based on source MAC addresses - Scalable per port bandwidth control (Step = 64K, up to 100M) - 2K MAC learning address - Ethernet packet length 9K Jumbo frame for LAN and up to 2048 bytes for WAN - ITU-T G.8032 Ethernet Ring Protection switching (ERPS) - Support SNTP protocol to get network time - DHCP Client/ Server/ Relay - Static Route, RIP1/ RIP2 dynamic routing, OSPF, BGP - Virtual Router Redundant Protocol (VRRP) - Point to Point over Ethernet (PPPoE) protocol support - Network and Port Address Translation (NAT & NAPT) - Virtual IP for different VLAN (LAN supports dual IP) - VPN provides PPTP & L2TP protocol - Firewall Anti-DDOS attack & ACL security protection |
| Management: | - Configuration via DIP switches, Telnet (SSH), WEB GUI (HTTP/HTTPS) , SNMP v1/v2c/v3 and TR-069 - Console: DB9 connector (RS232C) - Local and Remote status for diagnostic - Supports Performance Monitoring function (PM) - Remote control and configuration through embedded operation channel (EOC), do not need remote IP - Firmware upgradeable via Web or TFTP - Front panel test button for easy loop healthy testing - Terminal Access Controller Access-Control System (TACACS+) - Support three access levels for administrator, operator, user and operation log - Support login password complexity of 6 characters, uppercase and lowercase letters, digits, special symbols - Anti-camouflage attack mechanism: lock IP and delay login - Dying Gasp function indicates the CPE mode lost power |
| Operating distance: | up to 8Km on AWG 26 copper wire |
| Front LEDs: | PWR, TST, ALM, CPE, DSL1~4, LAN1~4 with dual color LED for easy status monitoring |
| Power: | 100~240V AC to 12VDC adapter (for Comet 160xF series) or DC 48V (for Comet 160xF/DC48 series) |
| Consumption: | 8 Watt maximum |
| Temperature: | 0-50°C (Operating); 0-70°C (Storage) |
| Humidity: | 10-90% non condensing (Operating); 0-70% (Storage) |
| Dimensions(WxDxH): | 200mm x 150mm x 39mm |
| MTBF: | 35,000 hours |
Additional information on Comet-1602F/1604F/1608F G.shdsl.bis 2/4/8-wire Ethernet
Extender modems:
PDF Datasheet; PDF User Manual.
Additional Information
Interface Type: |
Fast Ethernet |
Interface Type: |
POTS line |
Management: |
web-managed |
Management: |
SNMP |
Management: |
local console |
Management: |
telnet |
Tx Distance: |
5Km |
Power Type: |
separate AC adapter included |
Connectors: |
RJ45 (Ethernet) |
Connectors: |
RJ11 |
Features: |
802.3ah OAM |
Features: |
802.1q VLAN |
Features: |
802.1p CoS |
Features: |
bandwidth limiting |
