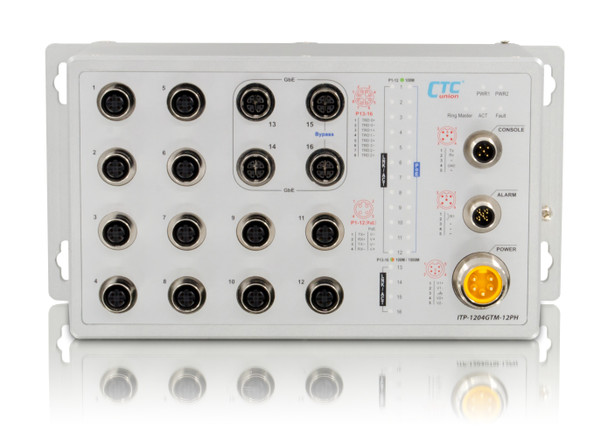

ITP-1204GTM-12PH EN50155 Managed Gigabit PoE Switch, 12x 10/100Base M12 + 4x GbE M12 with 12x PoE+ ports M12, 120W budget, 24/48/72/110VDC

Product description
 The ITP-1204GTM-12PH is an EN50155 certified managed PoE switch, that provides 4x Gigabit M12 X-code Ethernet ports and 12 100Megabit M12 D-code, features a total of 12 PoE plus ports IEEE 802.3at compliant that are classified as power source equipment (PSE) and provide up to 30 watts of power per port with a maximum power budget of 120W.

Housed in rugged wall mountable enclosures, these switches are designed for IEEE 802.3af/at PoE compliant powered devices (PDs), such as surveillance cameras, wireless access points, and IP phones. These PoE switches use M12 connectors to ensure tight, robust connections and guarantee reliable connections against vibration and shock.

Features

• A total of 16 Ethernet ports: 12 for Fast Ethernet, 4 for Gigabit Ethernet and 2 bypass ports for network connections
• 12 ports are available with PoE PSE functions supporting 802.3af/at with a total PoE budget of 120W
• Includes 2 bypass ports for network pass through in case of equipment or power failure
• M12 and M23 connector against vibration and shock, M12 X-code for Gigabit port
• Cable diagnostics, identifies opens/shorts distance
• STP, RSTP, MSTP, ITU-T G.8031 ERP, ITU-T G.8032 Ethernet Protection Ring (ERPS) for redundant cabling
• Provides up to 5 instances that each supports μ-Ring, μ-Chain or Sub-Ring type for flexible uses. (Please see CTC Union's μ-Ring white paper for more details)
• μ-Ring for Redundant Cabling, recovery time<10ms in 250 maximum devices
• Supports TTDP for train application
• Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
• Supports EMS Management

Additional information on ITP-1204GTM-12PH model: PDF datasheet.

We do provide the M12 or M23 connectors required for connectivity of these special EN50155 compliant switches. For such options please visit related M12 connector pages or contact our sales department by e-mail or call us.
