INJ-IG03-PH Gigabit Ethernet Industrial Active to Passive PoE Converter

Product description

The INJ-IG03-PH is an active IEEE 802.3af/at PoE converter to passive PoE. Such instrument is crucial to integrate non-IEEE compatible PoE devices. These passive PoE devices do not follow the IEEE 802.3af/at standards and they cannot be turned on with regular "active" PoE PSE equipment. The INJ-IG03-PH takes the standard IEEE 802.3af/at and converts it into a 12/19/24Vdc 30W direct power output that is suitable for passive types PoE equipment. There are many makers of passive PoE equipment, worth mentioning among them Ubiquiti equipment. Some consideration for passive PoE is a lower voltage requirement compared to IEEE standard, that is better suited in commercial deployments.

The INJ-IG03-PH is Plug and play, easy to use, with no tools required, offering high reliability, and being suitable for deploying non-standard PoE devices, such as entry level PoE cameras or wireless APs, as well as devices that require direct power supply through Ethernet but no protocol negotiation.

Technical specifications

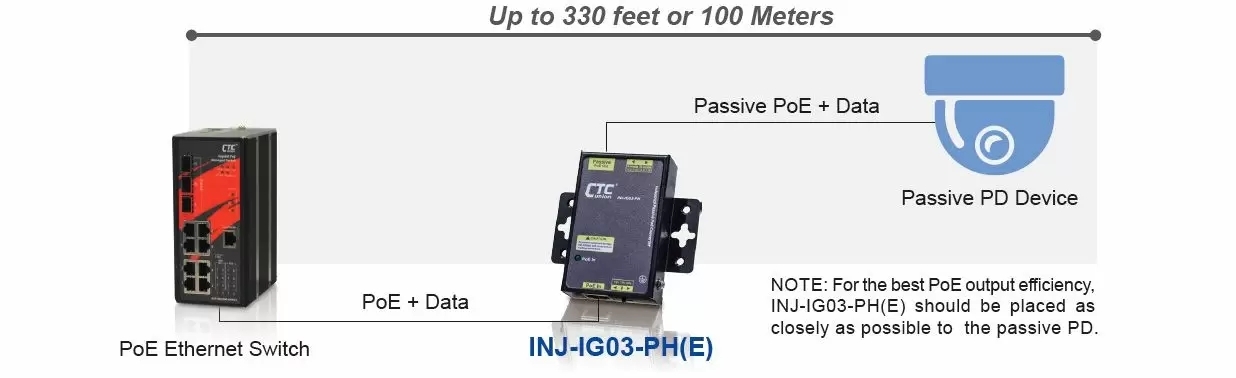

• Converts 48V IEEE802.3af/at PoE Input to 12/19/24V Passive PoE Output (as in below diagram)
• Supports input PoE IEEE802.3af/at A mode (1,2,3,6) or B mode (4,5,7,8)
• Selectable passive PoE output voltage, 12/19/24VDC select by slide SW
• Selectable passive PoE output mode, A mode (1,2,3,6,) or B mode (4,5,7,8) select by slide SW
• Compliant with 10/100/1000Base-T(X)
• CE, FCC, Railway traffic EN50121-4 certified
• Heavy industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
• Wide operating temperature -40 ~ 75°C (INJ-IG03-PHE)
• IP30 rugged metal housing and fanless design

Additional information on INJ-IG03-PH PoE injector: PDF Datasheet , PDF User Manual
