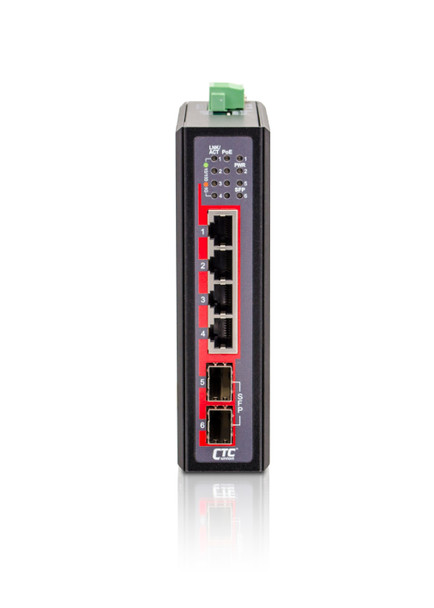

IGS-402CS-4PHE - 4 PoE+ 30W copper ports + 2 SFP ports Gigabit Ethernet compact Industrial switch, DIN rail mount, extreme temperature

Product description
The Industrial High Power PoE+ switches are specifically designed to meet IEEE 802.3af/at standards for powering network devices with up to 30 watts output per PoE port. With PoE functions, installing network devices such as IP surveillance cameras, wireless access points, IP phones, and other PoE enabled devices in outdoor or remote areas becomes a very easy task. The IGS-402CS-4PH(E) 6-port unmanaged full-Gigabit Ethernet switches support 4-port Power-over-Ethernet on ports 1 to 4 and 2-port 100/1000Base-X SFP slots for optical fiber connections. Switch is classified as power source equipment (PSE) and can be used to power IEEE 802.3af/at standard devices (PD), eliminating the need of additional power cable wiring. Moreover, with 48VDC for PoE/PoE+ output, unit is able to fit the common 48 VDC power systems found in industrial fields or telecom cabinets. The PoE switch supports IEEE 802.3/802.3u/802.3x/802.3ab with 10/100/1000M, full/half-duplex, MDI/MDI-X auto-sensing and provides an economical high bandwidth solution for your industrial Ethernet network. The wide operating temperature (-40 ~ 75°C) E model is designed especially for industrial harsh environment applications.

Features

• Redundant dual DC input Power 48VDC (44~57VDC)
• 4-port IEEE802.3at/af PoE Output (30W per port, for most demanding PoE applications)
• IP30 rugged metal housing
• Wide operating temperature -40~75°C (IGS-402CS-4PHE only)
• UL508, CE, FCC, UL60950-1
• Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 Certified
• 4-Port 10/100/1000Base-T(X) copper and 2 x 100/1000Base-X SFP transceiver ports

Additional information on IGS-402CS-4PHE series: PDF datasheet; PDF Installation Manual.
SFP transceivers are not included with the switch. For such options, please contact our sales department by e-mail or call us.
