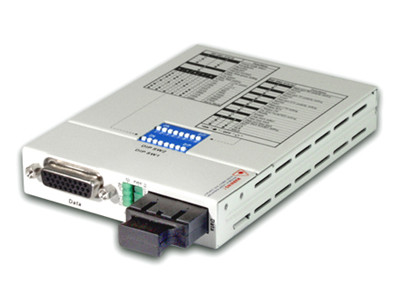

FIB1-V35 - V.35 synchronous serial interface to fiber media converter
- SKU:
- FIB1-V35
- Availability:
- Ships same day for orders placed before 3:30PM PST
Description
* - Please note that this media converter comes by default with an V35 MB34 female connector cable. If a male type cable is needed, please contact us. It also does include an AC 90-240V power adapter in its carton package.
Product description
The FIB1-V35 is a media converter for V.35 high-speed synchronous data interface transmission over optical fiber media.
FIB1-V35 model is available in a wide range of SC type optical modules, covering operating distances from 2Km up to 120Km. The media converter is also available for WDM single strand fiber optic connections in 4 different flavors. FIB1-V35 works with the FRM301 rack with SNMP management, the card status, type, version, fiber link status, data link status and alarms can all be displayed. Configuration is also available to enable or disable the port, reset the port, set the data rate, modify the clock mode, and initiate local or far end loop back tests.
Technical specifications
| Interfaces: | DB26 connector for V.35 synchronous port and SC, ST or FC 155M fiber port |
| Operating wavelength: | 1310nm or 1550nm, MM, SM, WDM |
| Operating distance: | 2Km on 62.5/125um fiber, up to 120Km on 9/125um fiber |
| Optical connector: | SC, ST or FC available |
| Front LEDs: | PWR, Fiber Link, TD, RD, RTS, CTS, DCD, Test mode |
| Power: | External 90-260V AC switching adapter 9VDC@1A with NEMA1-15(2 blades only), US type main plug |
| Temperature: | 0~50°C (Operating); 0~70°C (Storage) |
| Humidity: | 20-80% non condensing (Operating); 0-90% (Storage) |
| Consumption: | less than 5W |
| Dimensions(WxDxH): | 85.6mm x 122.6mm x 20mm |
| Weight: | 310g (without AC adapter) |
| Compliance: | CE, FCC Class A |
| MTBF: | 65,000 hours |
Fiber power budget according to available models
| Model | Distance | Lambda | Min. Output (dBm) | Sensitivity (dBm) | Power Budget (dB) |
| FIB1-V35-SC2F | 2Km | 1310nm | -20 | -31 | 11 |
| FIB1-V35-SC15F | 15Km | 1310nm | -24 | -35 | 11 |
| FIB1-V35-SC30F | 30Km | 1310nm | -15 | -35 | 20 |
| FIB1-V35-SC50F | 50Km | 1310nm | -8 | -36 | 28 |
| FIB1-V35-SC80F | 80Km | 1550nm | -5 | -34 | 29 |
| FIB1-V35-SC120F | 120Km | 1550nm | 0 | -35 | 35 |
| FIB1-V35-SC20AF | 20Km | Tx:1310nm Rx:1550nm | -15 | -32 | 17 |
| FIB1-V35-SC20BF | 20Km | Tx:1550nm Rx:1310nm | -18 | -32 | 14 |
| FIB1-V35-SC40AF | 40Km | Tx:1310nm Rx:1550nm | -7 | -32 | 25 |
| FIB1-V35-SC40BF | 40Km | Tx:1550nm Rx:1310nm | -8 | -32 | 24 |
| FIB1-V35-SC60AF | 60Km | Tx:1310nm Rx:1550nm | -5 | -34 | 29 |
| FIB1-V35-SC60BF | 60Km | Tx:1550nm Rx:1310nm | -5 | -34 | 29 |
| FIB1-V35-SC80AF | 80Km | Tx:1310nm Rx:1550nm | -2 | -34 | 32 |
| FIB1-V35-SC80BF | 80Km | Tx:1550nm Rx:1310nm | -2 | -34 | 32 |
Additional information on FIB1-V35 converter:
PDF Datasheet; PDF Installation Manual.
Note: Currently only some of the FIB1-V35 models are always available on stock, equipped with SC type connector. The available models are: Multimode 1310nm - 2Km, Singlemode 1310nm - 15Km and WDM A/B - 20Km. On special request of customer, based on manufacturer confirmation, all other FIB1-V35 media converters can be provided, manufacturing lead time averaging 15 days. Versions of FIB1-V35 with ST or FC optical connectors are available on request. X.21 interface is supported also, for X.21 only a special DB15 data cable is required. For such converters, including X.21 option, please contact our sales department by e-mail or call us.
Additional Information
UPC: |
811704011656 |
Interface Type: |
V.35 |
Interface Type: |
RS-530 |
Interface Type: |
RS-449 |
Interface Type: |
X.21 |
Management: |
un-managed |
Management: |
SNMP |
Power Type: |
separate AC adapter included |
Connectors: |
SC |
Connectors: |
DB25 |
Connectors: |
MB34 |
Connectors: |
DB15 |
Cable Type: |
simplex |
Cable Type: |
duplex |
Cable Type: |
50/125um multi-mode |
Cable Type: |
62.5/125um multi-mode |
Cable Type: |
9/125um single-mode |
